Introduction

The Helium Polish diamond scanner is known to be the most precise and popular polish diamond scanner with a very intuitive software, used invariably by diamond cutting factories, laboratories and dealers alike.

But like all Silhouette shadow scanner, Helium Polish shadow scanner cannot make direct measurement of table and table star facets, they being either covered by the stage, or shadowed by the stage itself.

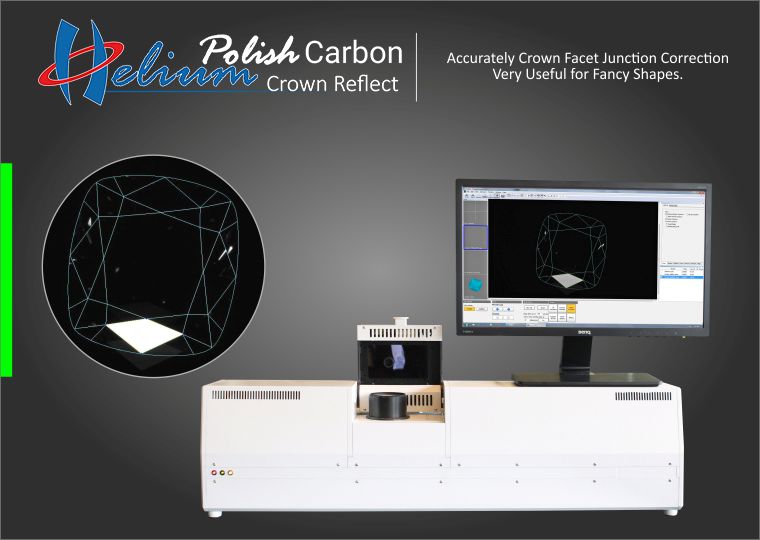

There comes the GURU, helping improve scan from the Helium Polish Shadow scanner. When a diamond scanned on HP shadow scanner is scanned on HP – Crown Reflect scanner, the information from the previous scan will be used to light the individual facets on the crown, including table facet. Based on the shine from the facet, the model will be corrected to result in very precise model building and accurate facet size, slope and azimuth angle measurement.

This accurate 3D model can be used to calculate facet size and facet junction size with ultimate precision, allowing one to grade the polish diamond’s cut grade, symmetry grade as well as minor symmetry, completely objectively.

Salient Features

Scanning and report generation time as small as 8 seconds

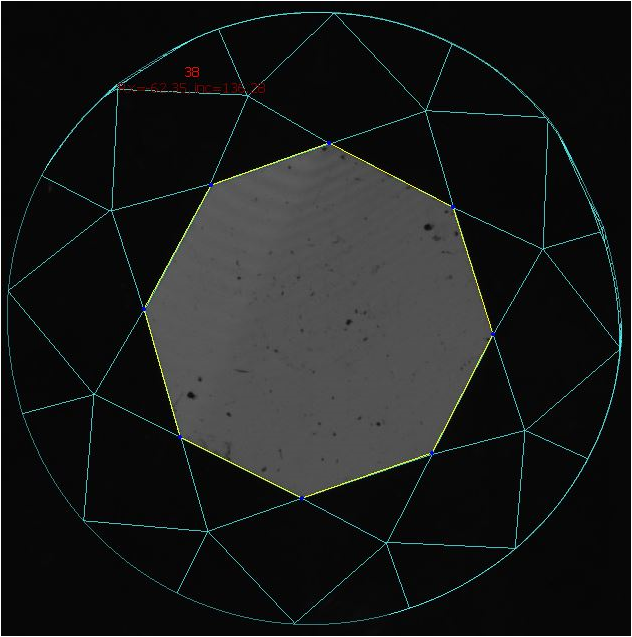

Very accurate table measurement, being direct measurement.

Generates a collage for a quick scan check.

Consistent measurement readings comfort the grader grade the stone objectively. The minor symmetries are very precisely picked up, allowing graders to completely rely on the 3D model built by the scanner, and grade the symmetry objectively: Junctions as corrected and built by HP-CR scanner:

Helium Polish Crown Reflect scanner do not require any adjustments or calibration. In fact the precision is built into the scanner to consistently give the correct reading all the time, no matter where the scanner is installed or when it is used.
Interactive 3D (i3D) report includes everything one wants in a report, including photoreal images and fold symmetry report

The program allows one to prepare optional* Custom Report to suitable any specific need or analysis.
More than 3000 data fields are exported, including images for every scan.
Useful for Rounds and almost all Fancies.
Can build 3D models of special fancy cut diamonds with very high precision. while using sample ASC as scan reference.
Helps polishers in correcting the multi-fold symmetry, and the grader to objectively grade the shape symmetry based on the scan data:

Specification

MODEL	HP-CR⁺ 22.5
Field of view	14.2 X 22.6
Polish size Range	4.5 mm to 16 mm
Slope angle limit	0° and 15° to 40°
Diamond types	Any Cut
3D-model accuracy	11.7 microns
Standard ReCut option	Available
Asymmetric SMART Recut Option based on GIA Facetware + MyGIA	Optional (Euro 4020)
Asymmetric SMART AnyCut	Optional
GIA Facetware based Grade estimation	Optional - Cut as well as Symmetry (Euro 1235)
Soft HTML5 Report	Very advanced interactive 3D report (i3D report)
Print reports	Available (Very detailed + user defined)
Custom report	Available
Mfg. Warranty	24 months
Service Warranty	12 months
Projected RBC range	0.35 to 10.7 Cts
Projected Marquise Range	0.60 to 3.8 Ct

Hardware Specification

MODEL	HP-CR⁺ 22.5
Lens	0.5x
CMOS Camera	1/1.2" - 1936 X 1216
Computer Requirements	View
Operating Systems	Windows 11 Professional - 64bit
Weight	25 Kgs
Dimensions L x W x H	92cm X 19cm X 31cm
Power consumption	220V 50Hz 300W (Other than this, contact us)

Price (Ex-works)

MODULE	Automatic Asymmetrical Smart Recut
HP-CR⁺ 22.5 :	€ 40,490.00 (includes Euro 3000 for built-in 2^nd year warranty)
Carbon Annual License Fee (Applicable from the 2nd Year Onwards) * Subject to annual inflation adjustments.	€ 1080.00*
All The Prices Are Ex-Works, Surat, Excluding Freight, Insurance, Packing & Forwarding and Taxes

Terms & Conditions
HP Crown Reflect Carbon Scanner can be used only with an annual subscription payable to Octonus Finland Oy Ltd from 2^nd year onwards.
The payment should be in 100% advance.
All prices are subject to change without notice and are not guaranteed, except that price for an order that LEXUS SOFTMAC has accepted.
