Octonus Adaptive Light

Direct Light HDR

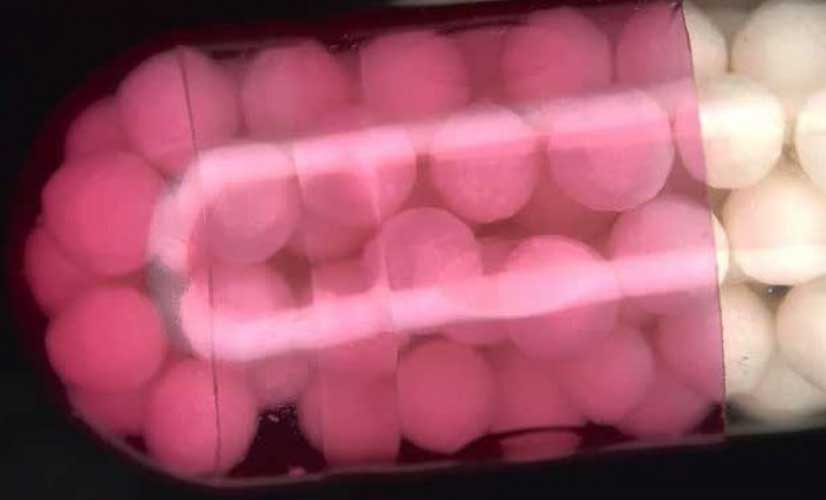

Diffuse Light HDR

Adaptive Light

Medicine balls in transparent shell

API as a number of C-headers(*.h). Other programming languages could be supported by an hourglass API design pattern. An hourglass support for C++ language will be included. Example of C-header | Example of C++ hover glass wrapper
Libraries (*.lib) corresponding to headers, thin library implementation, that could be compiled together with any C-compiler for Windows, any Windows runtime
Redistributable Windows binary components and configs

Getting a stream from camera in two modes:
- RAW camera frames processed by Octonus RAW processing pipeline
- Adaptive lighting mode (flicker-free illumination)
Camera triggering is done automatically by our controller, SDK has functions for capturing frames and their processing
Switching between lighting modes Adjusting the brightness of the frame (camera exposure analogy)
Several configurations of adaptive light for trade-off between performance and quality

Working with application compiled with SDK will require a dongle

Weight	2 kgs.
Dimension	240 L x 240 W x 140 H mm
Camera	2.3 MPxl (1/1.2” CMOS) Color
Field of View	80 x 50 mm
Working Distance	57 mm
No. of LED light source	16 (8-35˚, 4-45˚, 4-55˚)
No. of Shades	3 (White Diffuse, White Diffuse with holes, Black shade with holes)
AL Mounting Diameter	50 mm
Front Diameter	240 mm

Processor	Intel Core i7-8700K CPU 3.70GHz or higher
Motherboard	MSI 370-A Pro
RAM	Corsair 32GB DDR4 RAM or higher
Graphics Card	NVIDIA GeForce RTX 3070 or higher
SSD	HiStor SSD 240GB or higher
Hard Disk	HDD 1TB or higher
LAN Card	Intel I210 Gigabit Network card x 2 nos.
Operating System	Microsoft Windows professional 10/11 x64 bit


Module	Price in €
Octonus Adaptive Light	Starting from € 3900.00
	(Adaptive Light Module, Electronic Box, Standalone windows application, SDK)
Shipping cost	At extra Gross weight of the shipment – 12 kgs)
